API Commands

{
    "title": string,
    "album": string,
    "artist": string,
    "albumArt": string, // base64 encoded image
    "applicationName": string, // spotify, youtube, etc
    "playbackStatus": string // "playing" or "paused"
}

{
    "internalName": string,
    "value": object // type depends on setting
}

{
    "deviceId": string, // Accepts int or "leftcontroller" / "rightcontroller"
    "duration": int // in milliseconds
}

    Api.Send(Api.Commands.PlayDeviceHaptics, JSON.stringify(new Api.HapticsObject('deviceId', 500)));

void foobar()
{

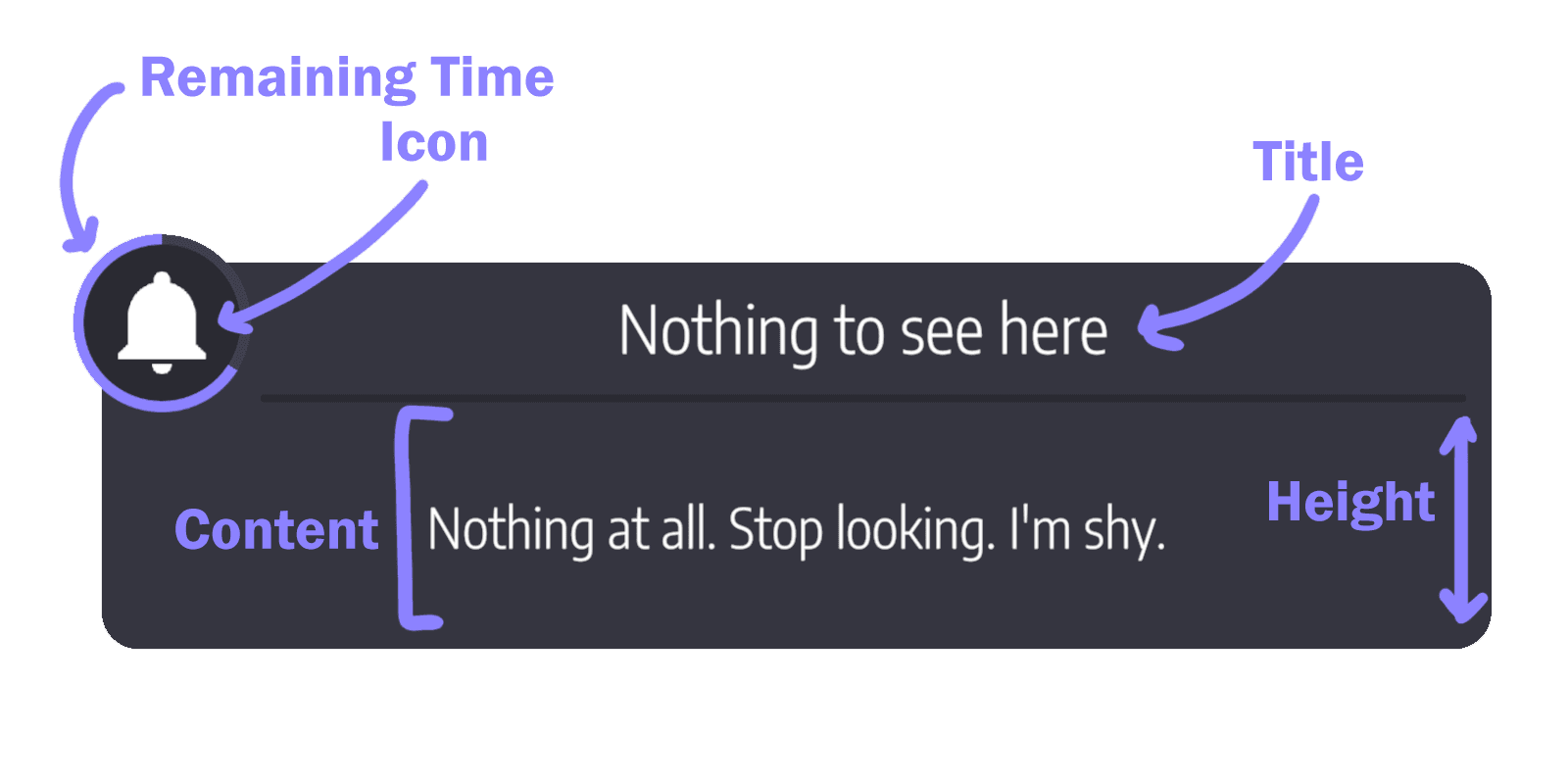

    XSONotificationObject notification = new XSONotificationObject(); // See WebsocketAPI / XSONotificationObject for more information
    notification.title = "woah its an example!";
    notification.type = 1;

    XSOApiObject apiObject = new XSOApiObject(); // See WebsocketAPI / XSOApiObject for more information
    apiObject.sender = "xsoverlay";
    apiObject.target = target;
    apiObject.command = "SendNotification";
    apiObject.jsonData = JsonSerializer.Serialize(notification);
    apiObject.rawData = null;

    ws.Send(JsonSerializer.Serialize(apiObject));
}

void foobar()
{
    ulong overlayHandle = 0; // See RequestOverlayIDs command for information about how to get your overlay handle.

    XSOApiObject apiObject = new XSOApiObject(); // See WebsocketAPI / XSOApiObject for more information
    apiObject.sender = "xsoverlay";
    apiObject.target = target;
    apiObject.command = "RequestUpdateCursorCollisionTexture";
    apiObject.jsonData = null;
    apiObject.rawData = overlayHandle;

    ws.Send(JsonSerializer.Serialize(apiObject));
}

void foobar()
{
    ulong overlayHandle = 0; // See RequestOverlayIDs command for information about how to get your overlay handle.

    XSOApiObject apiObject = new XSOApiObject(); // See WebsocketAPI / XSOApiObject for more information
    apiObject.sender = "xsoverlay";
    apiObject.target = target;
    apiObject.command = "RequestUpdateOverlayCanvasSize";
    apiObject.jsonData = "{
        "width": int,
        "height": int
    }";
    apiObject.rawData = overlayHandle;

    ws.Send(JsonSerializer.Serialize(apiObject));
}

{
    "target" : "yourappname",
    "command": "UpdateDateTime",
    "jsonData": {
        "Date": string,
        "Time": string,
        "CurrentSessionLength": string
    }
}

{
    "target" : "yourappname",
    "command": "UpdateTheme",
    "jsonData": {
        "HiTone": string,
        "MidTone": string,
        "DarkTone": string,
        "ContrastingTone": string,
        "ErrorTone": string,
        "WarningTone": string,
        "ConfirmTone": string,
        "AccentColor": string,
        "AccentColorBright": string
    }
}

    XSOApiObject.target = "xsoverlay";
    XSOApiObject.command = "RequestSteamAvatar";
    XSOApiObject.rawData = "medium"; // can be large, medium, or small. defaults to medium if left empty

    WebsocketClient.Send(JsonSerializer.Serialize(XSOAbiObject));

{
    "target" : "yourappname",
    "command": "UpdateSteamAvatar",
    "jsonData": {},
    "rawData": string // Avatar image .png encoded in base64.
}

{
    "target" : "yourappname",
    "command": "UpdateDeviceInformation",
    "jsonData": {
        [
            {
                "id": int, // Device ID according to SteamVR
                "classification": int,
                "type": int,
                "lastUpdated": string, // ISO-8601 Time
                "lastBatteryUpdate": string, // ISO-8601 Time
                "connection": int, // connection status
                "charging": bool, // charging status
                "battery": float, // 0-100 battery life
                "label": string, // shorthand label
                "name": string, // SteamVR device name
                "timeEstimate": string, // estimated time remaining
                "runningBatterySecondsPerPercent": [ // How long in seconds it took for 1% battery to drain. Running list, contains last 5% drain.
                    float,
                    float,
                    float,
                    float,
                    float
                ],
                "runningBatteryIndex": int, // current index for the running list above.
                "fingerprint": string, // SteamVR unique fingerprint for the device.
                "deviceDidPingLowBattery": bool, // has this device pinged low battery yet
                "friendlyName": string, // friendly name for the device. Not always used.
                "waitingForFirstRealBatteryUpdate": bool
            },
            // ... more devices ...
        ]
    }
}

{
    "target" : "yourappname",
    "command": "UpdateLayoutModeState",
    "jsonData": {},
    "rawData": bool // bool representing state of layout mode.
}

{
    "target" : "yourappname",
    "command": "UpdateMediaPlayer",
    "jsonData": {
        "artist": string,
        "title": string,
        "albumTitle": string,
        "albumArt": string, // Base64 string representing album art image.
        "playbackStatus": bool // bool represeting playback state
    }
}

{
    "target" : "yourappname",
    "command": "UpdateSettings",
    "jsonData": {
          "AccentColor":  // Represents the theme accent color.
          {
                "r": float, // red
                "g": float, // green
                "b": float, // blue
                "a": float // No longer used.
          },
          "AdaptiveColor": float, // Represents how much mix the accent color into the primary theme color. This is between 0 and 1.
          "AimAtTarget": bool, // When enabled, this will aim the overlay at the target when holding it.
          "AimTarget": int, // Represents the target an overlay will aim at when holding it. This could be mixed (0), head (1), or hand (2). AimAtTarget must be enabled for this to work.
          "AllowAdminPermissions": bool, // When enabled, XSOverlay will be granted admin permissions.
          "AllowWristMovement": bool, // When enabled, this will allow the wrist overlay to be moved.
          "AlwaysShowDetailedInformation": bool, // When enabled, the wrist battery widget will always show battery percentage and time remaining.
          "AutoMediaDetection": bool, // When enabled, XSOverlay will automatically detect media playing.
          "AutoRecenter": bool, // When enabled, XSOverlay will automatically re-center when layout mode opens.
          "AutomaticMouseControl": bool, // When enabled, the mouse cursor automatically moves with the VR Cursor, or if an input is required first.
          "BatteryFontScale": int, // Represents the font-size for the battery widget.
          "BlockInputToBackgroundApplication": bool, // When enabled, XSOverlay will attempt to block input to the background application.
          "CaptureMethod": int, // Represents the capture method of the overlay. This is either Windows Game Capture (0) or BitBlt (1).
          "ContinentalTimeFormat": bool, // When enabled, the time format will be in 24 hour format.
          "CurvedOverlays": bool, // When enabled, this allows overlay windows to be curved.
          "DateFormat": int, // Represents the date format. This could be MM/DD/YYYY (0), DD/MM/YYYY (1).
          "DefaultShowBatteryPercentage": bool, // When enabled, the wrist battery widget will always show battery percentage instead of time remaining.
          "DiscordRichPresence": bool, // When enabled, XSOverlay will communicate to discord what you are playing.
          "DoubleClickDelay": float, // Represents the amount of time in milliseconds after a click that the cursor will freeze in place to allow for easier double-clicking.
          "DominantHand": int, // Dominant Hand. This would be left (0) or right (1).
          "ForceHigherQualityOverlays": bool, // When enabled, this will force overlays to be rendered at a higher resolution.
          "ForceJISKeyboard": bool, // When enabled, the keyboard is forced into JIS layout.
          "GrabSensitivity": float, // Represents the sensitivity of the grab gesture. This is between 0 (light) and 1 (hard).
          "HapticsStrength": float, // Represents the haptics strength when interacting with XSOverlay. This is between 0 and 1.
          "HideTooltips": bool, // When enabled, this hides tooltips.
          "HideWristOverlay": bool, // [Obsolete] This setting is no longer used. However, it is still here for backwards compatibility.
          "InputBlockingBehavior": int, // Represents the input blocking behavior. Chose between 'blocking when layout mode is open' (0) or 'blocking when hovering over an overlay' (1).
          "InputMethod": int, // Represents the input method of the cursor when interacting with devices. This would be touch (0) or mouse emulation (1).
          "InvertScaleGesture": bool, // When enabled, this will invert the scaling direction when scaling the overlay.
          "KeyboardFormat": int, // Format of the keyboard (minimal, half size, full).
          "KeyboardOpacity": float, // The opacity of the keyboard, between 0 and 1.
          "KeyboardSoundpackIndex": int, // Index to the currently loaded keyboard sound pack.
          "KeyboardSoundpackName": string, // Name of the currently loaded Keyboard sound pack.
          "KeyboardTypingSounds": bool, // When enabled, the keyboard typing noises are on.
          "Language": int, // Index of the currently selected language.
          "LanguageURL": string, // The path to the currently selected language on the system.
          "LowBatterySound": bool, // When enabled, XSOverlay will play a sound when the battery is low.
          "LowBatteryWarningPercent": int, // Represents the threshold of battery percentage that will trigger a low battery warning. This is between 0 and 100.
          "MediaThemeing": bool, // When enabled, XSOverlay will adjust the theme based on the playing media's album art.
          "NightLight": bool, // Represents the behavior of the night-light which can apply a red-ish hue to the overlays during select hours (true) or all time (false).
          "NightLightEndAMPM": bool, // When enabled, the night light cycle will end at PM, otherwise it will start at AM.
          "NightLightEndHour": int, // Represents the ending hour of the night light cycle.
          "NightLightIntensity": float, // Represents the intensity of the night light. This is between 0 and 1.
          "NightLightSchedule": bool, // When enabled, the night light will follow a schedule.
          "NightLightStartAMPM": bool, // When enabled, the night light cycle will start at PM, otherwise it will start at AM.
          "NightLightStartHour": int, // Represents the starting hour of the night light cycle.
          "NotificationOffsets": // Represents the notification offset relative to local space to the hmd.
          {
              "x": float,
              "y": float,
              "z": float
          },
          "NotificationScale": float, // Represents the notification scale. This is between 0 and 1.
          "OverlayClipAngle": int, // Represents the clip angle to auto-hide overlays when not looking at them. Auto-hide must be enabled for this to work.
          "OverlayCurveBias": float, // Represents the control strength of the overlay curving.
          "OverlayDefaultMaxFPS": int, // Represents the default maximum FPS of a newly created overlay overlay.
          "OverlayDefaultMinFPS": int, // Represents the default minimum FPS of a newly created overlay overlay.
          "OverlayDefaultOpacity": float, // Represents the default opacity of the overlay when it is created. This is between 0 and 1.
          "OverlayDefaultScale": float, // Represents the default scale of the overlay when it is created. This is between 0 and 1.
          "OverlayOpacity": float, // Represents the opacity of the overlay. This is between 0 and 1.
          "OverlayScale": float, // Represents the scale of the overlay. This is between 0 and 1.
          "PointerScale": float, // Represents the scale of the pointer. This is between 0 and 1.
          "PositionDampening": int, // Represents the reaction speed when an overlay adjusts its position when moving around. This is between 0 and 1.
          "PushSpeed": float, // Represents the speed of pushing/pulling an overlay. This is between 0 (slow) and 1 (fast).
          "RotationDampening": int, // Represents the reaction speed when an overlay adjusts its position when moving around. This is between 0 and 1.
          "ScaleSpeed": float, // Represents the speed of scaling an overlay. This is between 0 (slow) and 1 (fast).
          "SendAnalytics": bool, // When enabled, the anonymous analytics will be sent.
          "ShowWindowPreviews": bool, // [Obsolete] This setting is no longer used. However, it is still here for backward compatibility.
          "SmartRollAngle": int, // Represents the angle your head needs relative to the space overlay to adapt to being sideways. (I.E. For Laying down).
          "UUID": string, // UUID of the user. This is an anonymous identifier used for analytics.
          "UseDarkTheme": bool, // When enabled, XSOverlay will use the dark theme.
          "VersionNumber": int, // Version Number.
          "WristClipAngle": int, // Represents the clip angle to auto-hide the wrist overlay when not looking at it.
          "WristOffsets": // Represents the wrist overlay position in local space. This is relative to the device it's attached to.
          {
              "x": float, // X Positional offset
              "y": float, // Y Positional offset
              "z": float  // Z Positional offset
          },
          "WristOpacity": float, // Represents the opacity of the wrist overlay. This is between 0 and 1.
          "WristRotation":// Represents the wrist overlay rotation, in euler angles, in local space. This is relative to the device it's attached to.
          {
                "x": float, // X Euler Rotation
                "y": float, // Y Euler Rotation
                "z": float  // Z Euler Rotation
          },
          "WristScale": float // Wrist overlay scale.
        }
    }
}

{
    "target" : "yourappname",
    "command": "UpdateLanguageList",
    "jsonData": {
        "LanguageName": string,
        "LanguageName2": string,
        // ... more languages ...
    }
}

{
    "target" : "yourappname",
    "command": "UpdateLanguageMap",
    "jsonData": {
        // Key value map that XSO uses to translate languages.
        // Please look at translation files for the list of strings.
    }
}

{
    "target" : "yourappname",
    "command": "UpdateAchievementStatus",
    "jsonData": {
        "ACHIEVEMENT_NAME": bool,
        "ACHIEVEMENT_NAME_1": bool,
        "ACHIEVEMENT_NAME_2": bool,
    }
}

{
    "target" : "yourappname",
    "command": "UpdateWindowList",
    "jsonData": {
          "0": {
                "id": int,
                "title": string,
                "icon": string, // base64 icon image
                "windowPreview": string, // base64 preview image. Currently not used.
                "appName": string,
                "isDesktop": bool,
                "isPrimaryDesktop": bool,
                "isUWP": bool,
                "isSystem": bool
            }
            // ... more entries ...
    }
}

{
    "target" : "yourappname",
    "command": "UpdateActiveOverlayInformation",
    "jsonData": {
        "0": {
            "id": int,
            "title": string,
            "icon": string, // base64 icon image
            "windowPreview": string, // base64 preview image. Currently not used.
            "appName": string,
            "isDesktop": bool,
            "isPrimaryDesktop": bool,
            "isUWP": bool,
            "isSystem": bool
        }
        // ... more entries ...
    }
}

const HardwareType = {
    Generic: 0,
    Gpu: 1,
    Cpu: 2,
    Memory: 3
}

const HardwareManufacturer = {
    Nvidia: 0,
    Amd: 1,
    Intel: 2,
    Generic: 3
}

{
    "target" : "yourappname",
    "command": "UpdateRuntimePerformance",
    "jsonData": {
        "CPU": {
            "Type": int,
            "Manufacturer": int,
            "Name": string,
            "Temperature": float,
            "Load": float, // Used for device utilization, e.g. GPU / CPU Usage.
            "MemLoad": float, // Used for memory utilization, like VRAM / RAM.
            "MemSize": float
        },
        "GPU": {
            "Type": int,
            "Manufacturer": int,
            "Name": string,
            "Temperature": float,
            "Load": float, // Used for device utilization, e.g. GPU / CPU Usage.
            "MemLoad": float, // Used for memory utilization, like VRAM / RAM.
            "MemSize": float
        },
        "Memory": {
            "Type": int,
            "Manufacturer": int,
            "Name": string,
            "Temperature": float,
            "Load": float, // Used for device utilization, e.g. GPU / CPU Usage.
            "MemLoad": float, // Used for memory utilization, like VRAM / RAM.
            "MemSize": float
        },
        "Frametime": float, // Current time in ms between the previous frame and this frame.
        "Framerate": float, // Current framerate in Frames Per Second
        "MaxFrametime": float, // Maximum frametime based on Headset Refresh Rate in ms e.g. 90hz = 11.1ms
        "MaxFramerate": float // Equal to HMD Refresh Rate
    }
}

Api.Client.Socket.addEventListener('message', function message(data) {
   var decoded = Api.Parse(data);
    switch (decoded.Command) {
        case 'UpdateOverlayIDs':
            console.log(`Current Overlay ID for ${window.location.href} : ${decoded.JsonData[window.location.href]}`);
            break;
    }
});

{
    "target" : "yourappname",
    "command": "UpdateOverlayIDs",
    "jsonData": {
        "overlayPageURL" : ulong,
        "anotherOverlayPageURL" : ulong
        // ... more entries ...
    }
}
