Common Issues

The section below describes are some common issues that some users have encountered when using XSOverlay.

If this does not cover your issue or need additional assistance, please create an issue on GitHub (opens in a new tab) or Join the Discord (opens in a new tab) and ask for help in the #bug-reports channel.

This covers the following issues:

• XSOverlay opens briefly but then closes
• XSOverlay is not displaying in game
• XSOverlay is white/not displaying information

Administrator Rights

Previously, legacy users were required to run XSOverlay as administrator through the Windows compatibility menu for various reasons. This is no longer a requirement, as XSOverlay now has this functionality built within which ensures that things work properly. If this is your first time using XSOverlay, this is more then likely not an issue you will likely encounter.

1. Navigate to your XSOverlay installation directory (typically in your steam folder) and find the executable XSOverlay.exe

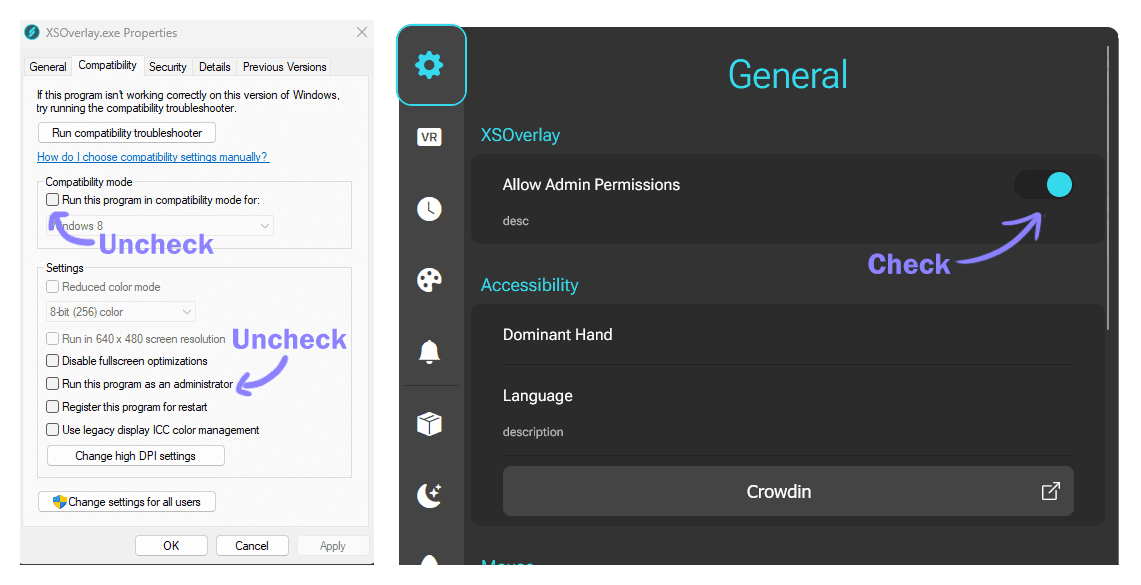

2. Ensure the following options are not checked (see image below for reference):
   • Ensure that checkbox for Run this program as an administrator is NOT checked.
   • Ensure that checkbox for Run this program in capatibility mode for is NOT checked.
3. Click Apply and then OK to save your changes.
4. Restart XSOverlay.
5. In XSOverlay, open the Settings menu, and navigate into the general tab.
6. Turn on 'Allow Admin Permissions'.
7. Restart XSOverlay.
8. You will get a UAC prompt. Accepting this will create the required services for XSOverlay to run as administrator without the need for future UAC prompts in the future.

Anti-Virus & Firewall

Sometimes anti-viruses detects false-positives when running XSOverlay and will prevent portions or the entirety of the application from operating. Configuration menus can differ from application to application, so refer to the manufacturer's documentation (or google) to ensure the proper steps are being applied correctly.

Exceptions:

Add exceptions for XSOverlay.exe, and XSOverlayMediaManager.exe to your firewall and antivirus software, by default it uses TCP ports 42070 and 42071 for communication. If you are using a custom port, ensure that you add an exception for that port as well.

All executables are found in the XSOverlay installation directory, which is typically located in your steam folder.

Main Executable

This is the core of XSOverlay which is responsible to communicating to the other XSOverlay services:

The executable is located in the root of the installation directory and is named XSOverlay.exe. This opens up UDP port 42069, which is used for the Notification API. This also connects on TCP port 42070 by default, which is used to communicate with the node server.

Media Handler

This is the service that is responsible for handling and managing media information and controls.

This is located in the [XSOInstallDirectory]/StreamingAssets/Modules/Media Manager/ directory and is named XSOverlayMediaManager.exe. This also connects on TCP port 42070 by default, which is used to communicate with the node server.

Ports Bindings

If you are unable to bind to the default ports, you can change the ports that XSOverlay uses by doing the following:

XSOverlay, by default, is configured to listen for WebSocket messages on port 42070. This can be changed by editing the ExternalMessageAPIConfig.json file located in the [XSOverlayInstallDirectory]/XSOverlay_Data/StreamingAssets/Plugins/Config/ directory.

The following options can be configured:

Edit the entry for WebSocketPort to a port that you know is not taken. The app will read the configuration file and use the WebsocketPort and 1 + WebsocketPort. For example, if set to port 40000, the app will hook port 40000 and 40001 so make sure that both are free.
